Best Quality for Single Girder Overhead Crane 5-50/10t L-type Single Girder Gantry Crane supply to Paraguay Supplier

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

The organization upholds the philosophy of "Be No.1 in good quality, be rooted on credit history and trustworthiness for growth", will keep on to provide previous and new customers from home and overseas whole-heatedly for Single Girder Gantry Crane,Mobile Single Beam Gantry Crane,Heavy Duty Single Girder Gantry Crane. we registered our own brand. We have tightened inspection for quality of product.

Best Quality for Single Girder Overhead Crane 5-50/10t L-type Single Girder Gantry Crane supply to Paraguay Supplier

 20T capacity L type gantry crane with hook for yard lifting is single girder Gantry Crane; with large net space due to L-shaped structure. With light weight, low overall height; the structure is compact, more cost savings, and it is cost-effective gantry crane.L type single girder gantry crane can take advantage of the space under the main girder with light weight and low overall height. The structure is compact, more cost savings and more effective. This product is widely used at open ground and outdoors to load and unload raw materials. It can be equipped with grab bucket, electric magnetic chuck, two-use and three-use pallets, handling bridge and spreader.


Application:

The product is applicable to the place in the factory where the capability of explosive is no higher than grade II B or II C, and where has mixture of detonating gas which is composed of flammable gas or steam, whose ignition temperature team belongs to T1~T4 team


overhead crane design mainly structure:

1. End carriage

2. overhead crane design with cab

3. Main beam

4. Tonnage brand

5. Electric hoist

6. Electric power transmission device


Capacity(T) 1,2,3,5,10 16,20
Span (M) 7.5-31.5
Crane travel mechanism Travel speed (m/min) 20 30 45 60 75 20 30 45 60 75
Reducer ratio 58.78 38.38 26.36 19.37 15.88 58.78 38.38 26.36 19.37 15.88
Motor Model ZDY21-4 ZDY21-4 ZDY122-4 ZDY131S-4 ZDY112L1-4
Power(kw) 2*0.8 2*1.5 1.5*2 2.2*2 2.2*2
Rotation(m/min) 1380 1380
Crane lift and hoist travel Electric hoist model CD1  MD1 CD1  MD1
Lift speed (m/min) 8,  0.8/8 3.5,  3.5/0.35
Lift height (m) 6,9,12,18,24,30 12,18,24,30
Travel speed (m/min) 20 (30) 20 (30)
Motor Taper squirrel cage type Taper squirrel cage type
Work duty A3-A5
Power supply 380v/220v/415v/50hz/60hz/3ph
Wheel diameter 270mm 300/400/500/600 600mm
Width of rail 37-70mm 37-70mm

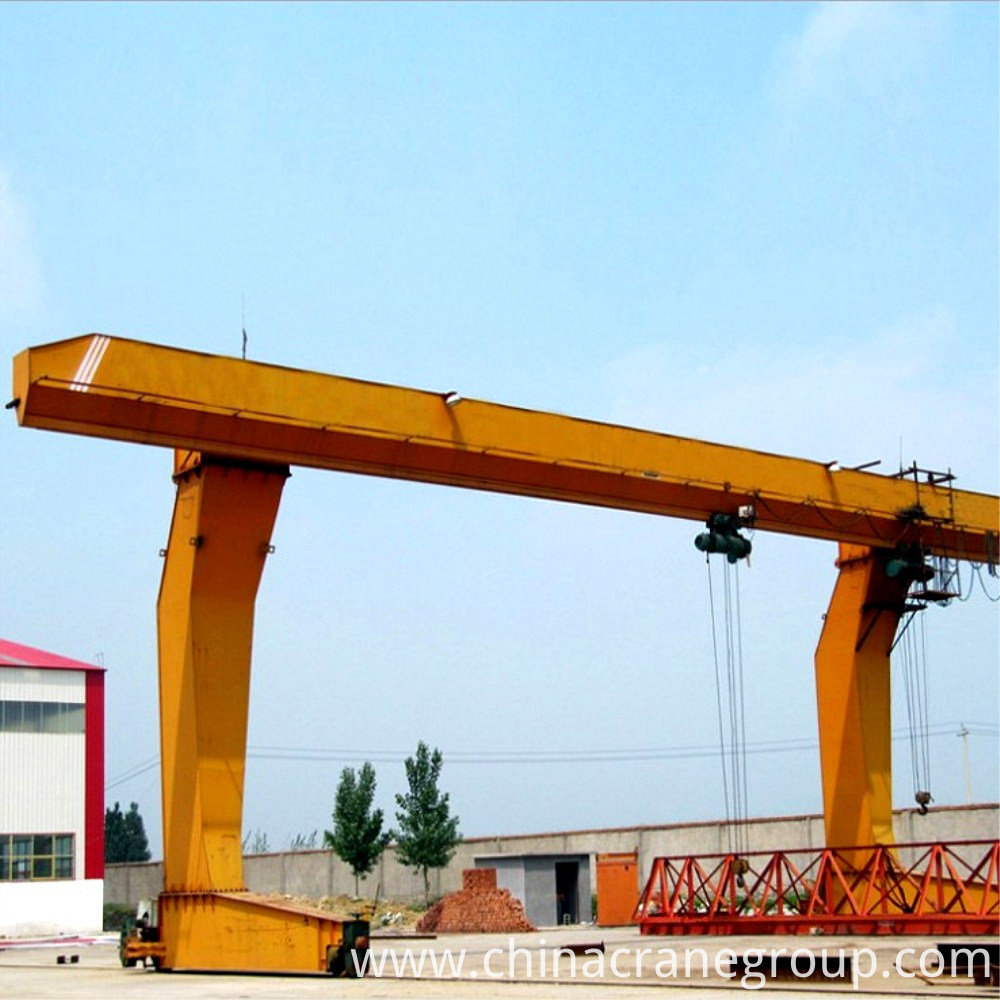

L-type Single Girder Gantry Crane


L Electric Trolley Gantry Crane

Contact me freely


1)Brief Introduction

Shandong Lite Industry Group has been founded in early 1970s and is a well known crane manufacturer in China. We have been producing equipments for over 50 years. There are over 3000 employees in our company, with over 480 senior technicians and management personnel. We have Research & Development in ship loader, ship unloader, rail mounted container crane and so on.
2)Main Products
Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
3)Main Markets
Our all cranes have been exported to over 100 countries! top quality and premium service has been accepted by our customers.
4)Application
Our cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on.
5)Certificates
GB/T 19001-2000, ISO 9001:2000, GB/T 24001-2004, ISO 14001:2004, GB/T 28001-2001, OHSAS 18001:1999, CE and so on.


"We now have several exceptional workers customers good at marketing, QC, and working with types of troublesome trouble during the creation system for 5-50/10t L-type Single Girder Gantry Crane. The product will supply to all over the world, such as: Bouvet Island,Congo,Eritrea. Our products are mainly exported to Southeast Asia, the Middle East, North America, and Europe. Our quality is surely guaranteed. If you are interested in any of our items or would like to discuss a custom order you should feel free to contact us. We're looking forward to forming successful business relationships with new clients around the world in the near future.
