Quality Inspection for Single Girder Eot Crane L Type Mobile Gantry Crane 10t supply to Georgia Supplier

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
  • Product Detail
  • Product Tags
  • Buyer Reviews

Bear "Customer first, Excellent first" in mind, we work closely with our shoppers and supply them with efficient and specialist services for Single Girder Traveling Overhead Crane,Gantry Crane With Electric Hoist,L-shape Gantry Crane Lifting Equipment. and trustworthy communication. Welcome all friends to place trial order for developing a long-term small business relationship.

Quality Inspection for Single Girder Eot Crane L Type Mobile Gantry Crane 10t supply to Georgia Supplier

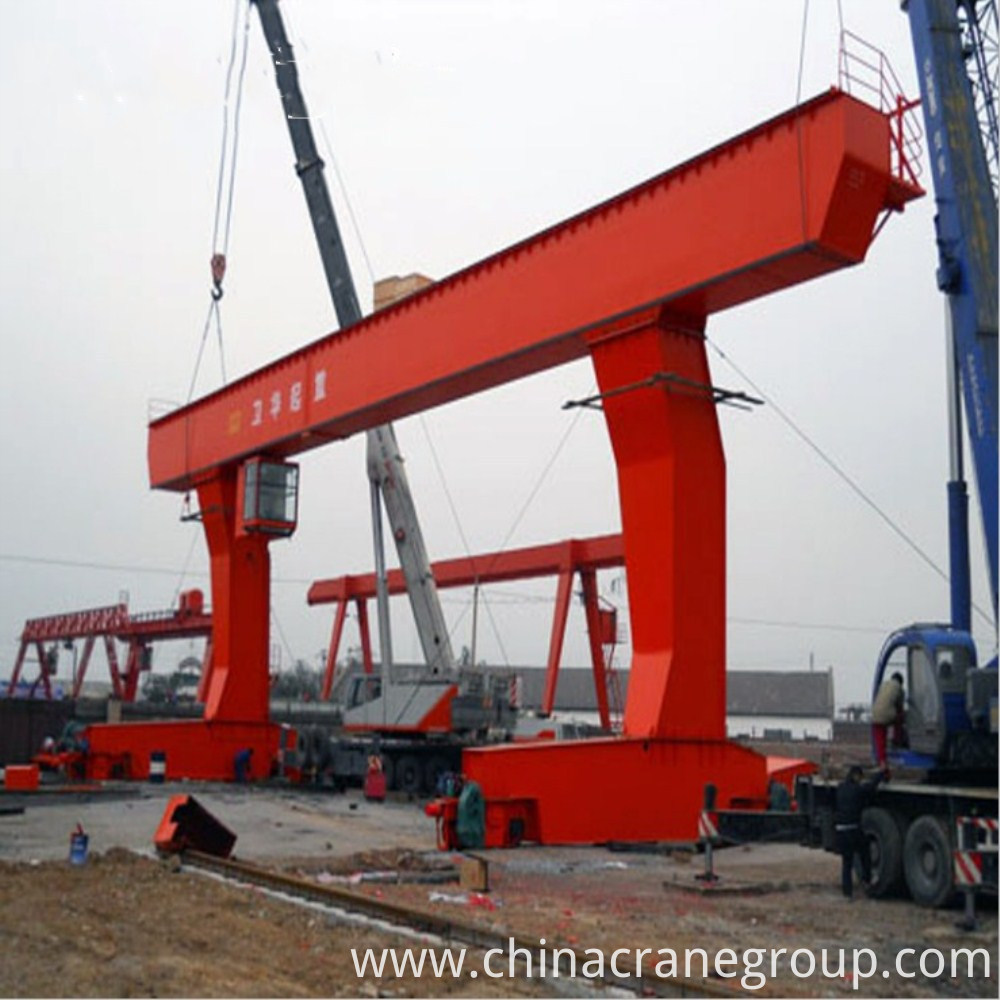

L Type Gantry Crane 10 ton , it is used together with CD MD Model electric hoists. It is a track traveling small and medium-sized crane. Its proper lifting weight is 5 to 10 tons. Its proper span is 12 to 18 meters and the proper working temperature is -20 degree to 40 degree.


20T capacity L type gantry crane with hook for yard lifting is single girder Gantry Crane; with large net space due to L-shaped structure. With light weight, low overall height; the structure is compact, more cost savings, and it is cost-effective gantry crane.L type single girder gantry crane can take advantage of the space under the main girder with light weight and low overall height. The structure is compact, more cost savings and more effective. This product is widely used at open ground and outdoors to load and unload raw materials. It can be equipped with grab bucket, electric magnetic chuck, two-use and three-use pallets, handling bridge and spreader.



overhead crane design mainly structure:

1. End carriage

2. overhead crane design with cab

3. Main beam

4. Tonnage brand

5. Electric hoist

6. Electric power transmission device


Capacity(T) 1,2,3,5,10 16,20
Span (M) 7.5-31.5
Crane travel mechanism Travel speed (m/min) 20 30 45 60 75 20 30 45 60 75
Reducer ratio 58.78 38.38 26.36 19.37 15.88 58.78 38.38 26.36 19.37 15.88
Motor Model ZDY21-4 ZDY21-4 ZDY122-4 ZDY131S-4 ZDY112L1-4
Power(kw) 2*0.8 2*1.5 1.5*2 2.2*2 2.2*2
Rotation(m/min) 1380 1380
Crane lift and hoist travel Electric hoist model CD1  MD1 CD1  MD1
Lift speed (m/min) 8,  0.8/8 3.5,  3.5/0.35
Lift height (m) 6,9,12,18,24,30 12,18,24,30
Travel speed (m/min) 20 (30) 20 (30)
Motor Taper squirrel cage type Taper squirrel cage type
Work duty A3-A5
Power supply 380v/220v/415v/50hz/60hz/3ph
Wheel diameter 270mm 300/400/500/600 600mm
Width of rail 37-70mm 37-70mm

Single Girder Gantry Crane

20T capacity L type gantry crane


Contact me freely

1)Brief Introduction

Shandong Lite Industry Group has been founded in early 1970s and is a well known crane manufacturer in China. We have been producing equipments for over 50 years. There are over 3000 employees in our company, with over 480 senior technicians and management personnel. We have Research & Development in ship loader, ship unloader, rail mounted container crane and so on.
2)Main Products
Gantry crane, overhead/bridge crane, shipbuilding crane, container crane, port crane, electric single beam crane,electric double beam crane & electric hoist, etc.
3)Main Markets
Our all cranes have been exported to over 100 countries! top quality and premium service has been accepted by our customers.
4)Application
Our cranes have been used for wide range fields, such as Industry of machinery, metallurgy, electric power, chemical, military, railroad, water conservancy, shipbuilding, port and large scale storehouse, and so on.
5)Certificates
GB/T 19001-2000, ISO 9001:2000, GB/T 24001-2004, ISO 14001:2004, GB/T 28001-2001, OHSAS 18001:1999, CE and so on.


We not only will try our best to offer excellent services to every customer, but also are ready to receive any suggestion offered by our customers for L Type Mobile Gantry Crane 10t. The product will supply to all over the world, such as: India,Trinidad and Tobago,Christmas Island. As we are moving forward we keep an eye on our ever-expanding product range and make improvement to our services.
